How to use wax when installing a toilet bowl

This article will cover the step-by-step installation of a wax gasket for your toilet bowl.

Step 1. Clean surfaces on underside of toilet bowl and floor flange of old wax and debris.
use_wax1

Step 2. Remove old floor bolts, and place new bolts secure with the retainer washer. The wax ring is in place here to show the black plastic flange facing downward on the floor flange.

use_wax2

Step 3. Press wax ring on bowl outlet with plastic flange pointing away from the bowl.
use_wax3

Step 4. Set bowl in place and use body weight to compress wax. Twist bowl slightly to spread wax.

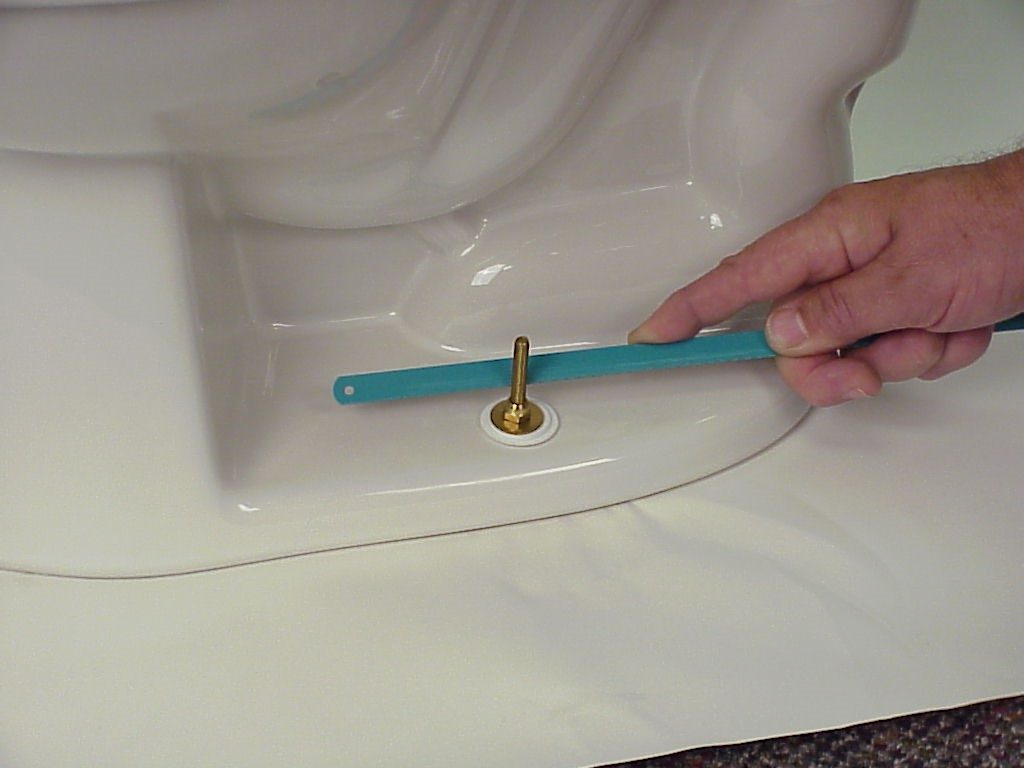

Step 5. Place bolt cover washer and metal washer then acorn nut on bolt. DO NOT OVER-TIGHTEN BOLT NUTS. Tighten nut carefully to prevent breaking the bowl. Use a hacksaw blade to cut bolt ¼” above the acorn nut.
use_wax4

Step 6. File burrs on nut then place bolt cap on bolt.
use_wax5

Step 7. Place bolt cap on top of bolt and snap onto bolt cover washer.
use_wax6

To download our free guide to fix common toilet problems please click here: Fluidmaster Toilet Repair Guide
