T-Series P40 Orbi Plates

https://www.fluidmaster.com/wp-content/uploads/2019/08/T-SERIES-P40-Technical-530x530.png

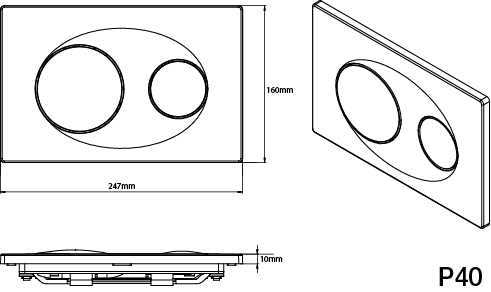

Technical Drawing

T-Series plates not only provide attractive designs to complement and enhance the bathroom, they are manufactured to the highest quality standards to ensure longevity. All T-Series plates will fit T02, T06 and T07 cisterns for truly universal and easy fitting.

Product Features
Technical Information
  • Can be installed in T02, T06 and T07 flushing systems
  • Available in gloss chrome, matt chrome, black or white finish
  • Dual flush
  • Quick and simple installation
  • Easy to clean
  • Order Number

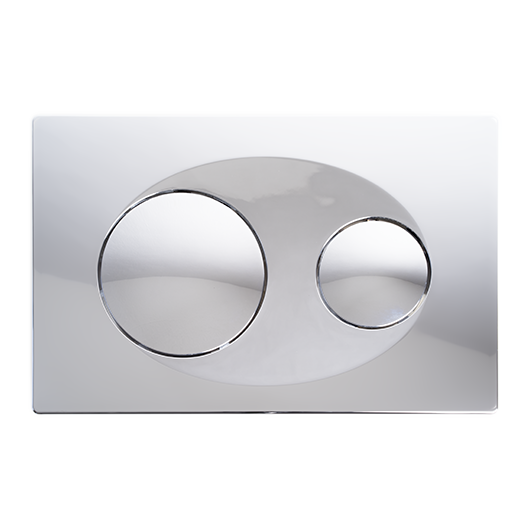

    P40-0120-0240 Gloss Chrome

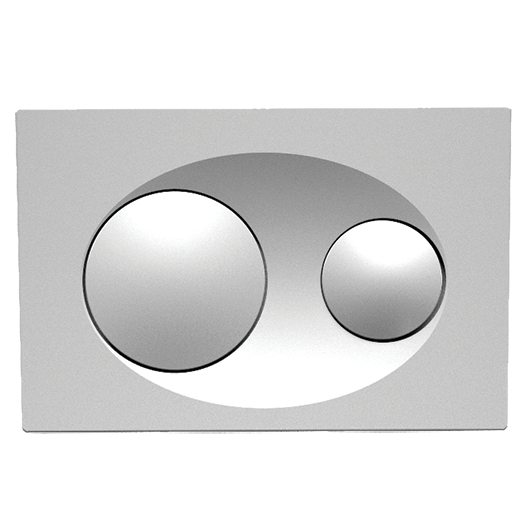

    P40-0110-0240 Matt Chrome

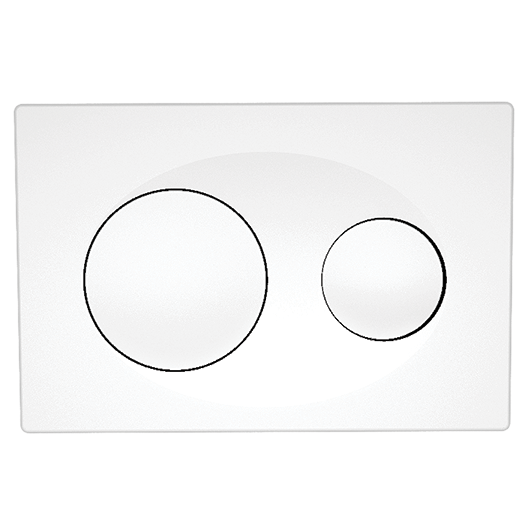

    P40-0130-0240 White

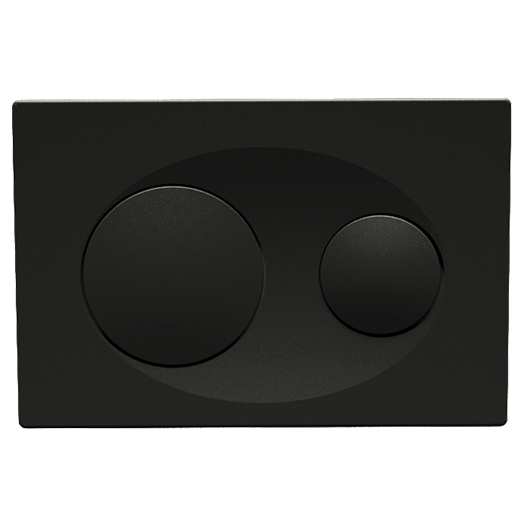

    P40-0190-0240 Black

  • Warranties and certifications
    10 year warranty
  • Application
    WC installation with T-Series concealed cisterns
  • Material
    Plastic
  • Height
    165 mm
  • Width
    247 mm
  • Depth
    14 mm
  • Cistern Model
    T02T06T07
