T-SERIES ACTIVATION PLATES

T-Series P47 Circle Plates
T-Series P40 Orbi Plates
T-Series P45 Tile Plates
T-Series P61 Tactile Plates
T-Series P43 Key Plates
T-Series P54 Vivente Plates

Find a Store

T-Series P45 Tile Plates

Gloss

Matt

Black

White

https://www.fluidmaster.com/wp-content/uploads/2019/08/T-SERIES-P45-Technical-530x530.png

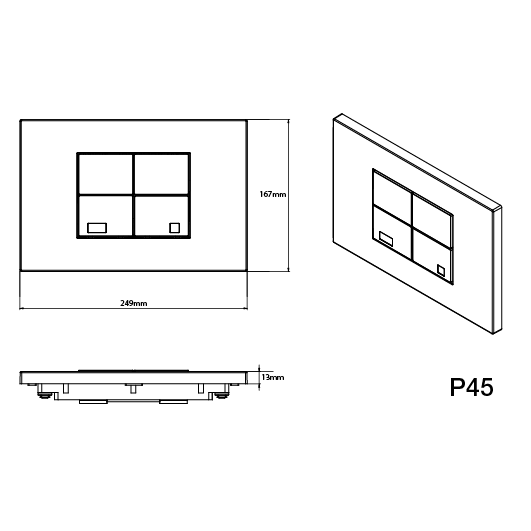

Technical Drawing

T-Series plates not only provide attractive designs to complement and enhance the bathroom, but are manufactured to the highest quality standards to ensure longevity. All T-Series plates will fit T02, T06 and T07 cisterns for truly universal and easy fitting.

Can be installed in T02, T06 and T07 flushing systems
Available in gloss chrome, matt chrome, black or white finish
Dual flush
Quick and simple installation
Easy to clean

Order Number

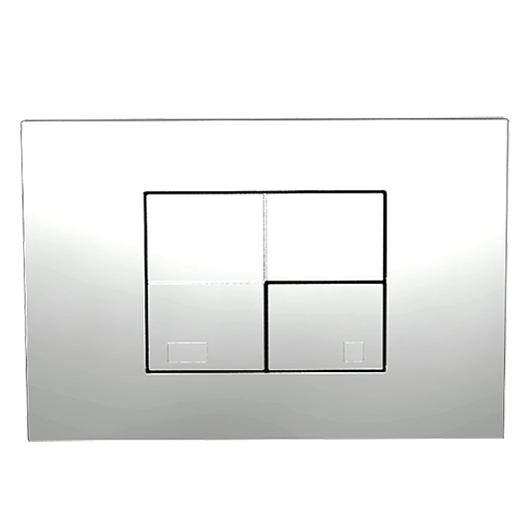

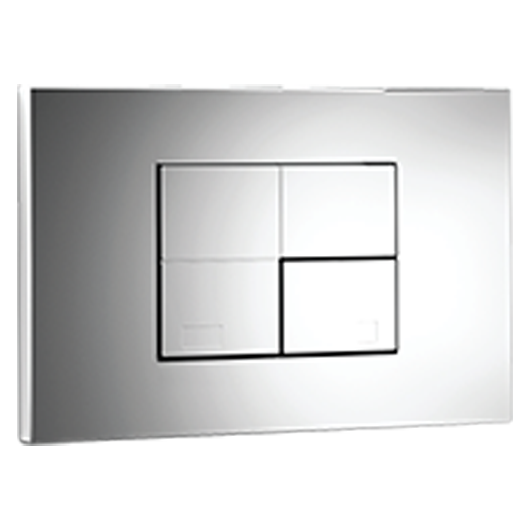

P45-0120-0240 Gloss Chrome

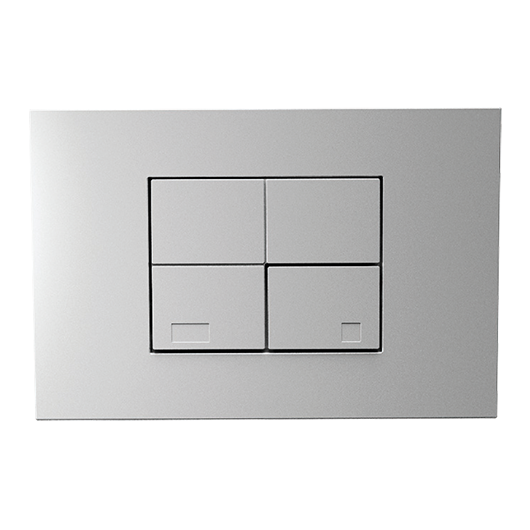

P45-0110-0240 Matt Chrome

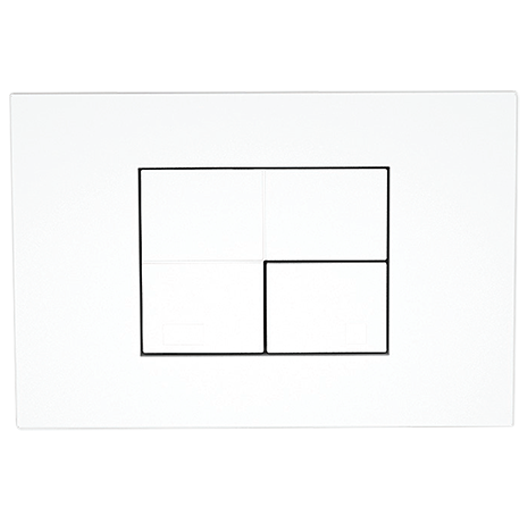

P45-0130-0240 White

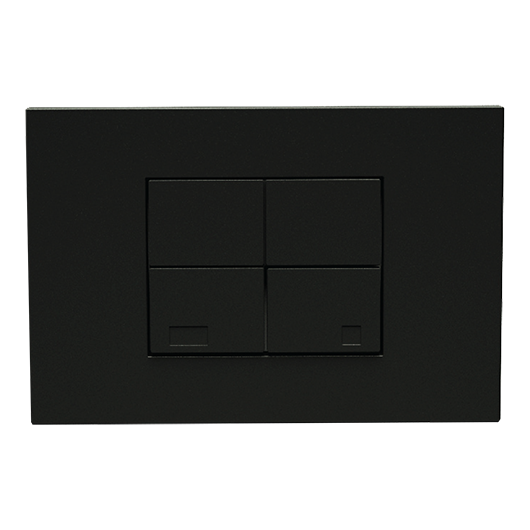

P45-0190-0240 Black
Warranties and certifications

10 year warranty
Application

WC installation with T-Series concealed cisterns
Material

Plastic
Height

165 mm
Width

247 mm
Depth

14 mm
Cistern Model

T02T06T07
