T-SERIES IN-WALL CISTERNS & WC FRAMES

Find a Store

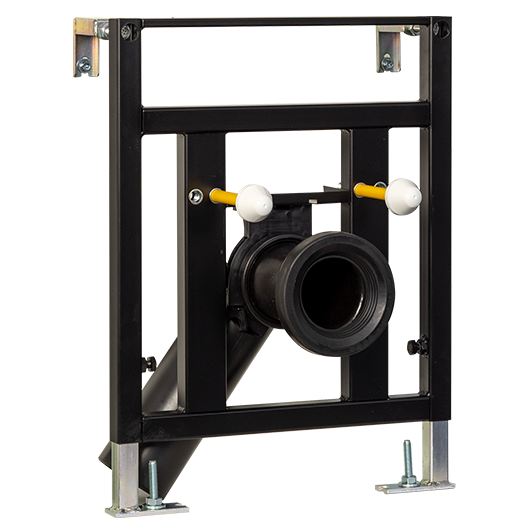

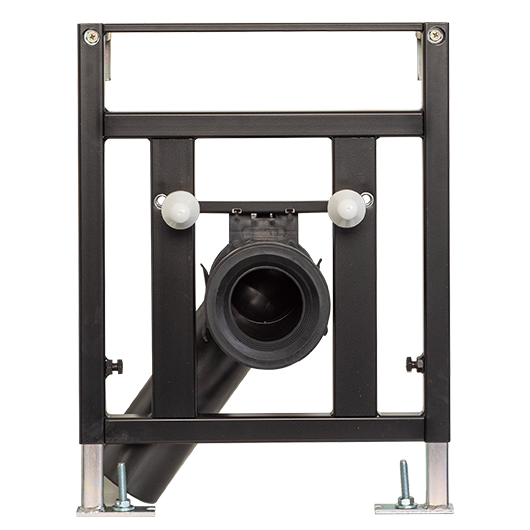

T-Series F2-0018-0240 Compact WC Frame

T-Series compact frames provides the flexibility to install a wall hung toilet, without the cistern built into the frame

Product Features
Technical Information
  • Compact WC frame designed to support a 400kg load
  • 180mm or 230mm bolt centres for fitting of most WC pans
  • 350mm adjustable height
  • Compact solution for fitting into smaller spaces
  • supplied with installation brackets and pan connector
  • Order Number

    F2-0018-0240

  • Warranties and certifications
    10 year warranty, 400 KG
  • Application
    Wall-hung WC pan
  • Material
    Steel
  • Self-bearing construction
    Yes
  • Surface protection
    Coated
  • Adjustable height
    YES
  • Adjustable width
    NO
  • Adjustable depth
    YES
  • Adjustable toilet height
    NO
  • Height
    520 - 870 mm
  • Width
    420 mm
  • Depth
    120 - 180 mm
  • Supplied with pan connector
    YES
  • Supplied with toilet attachment materials
    YES
