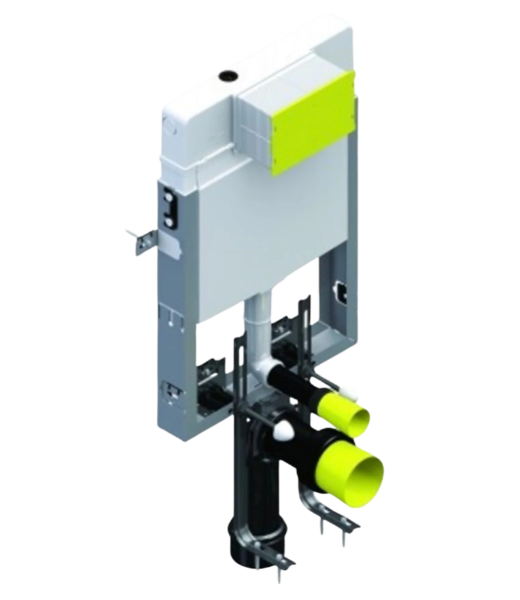

PrimaFlo Wall Mounting Dual Flush Slim Concealed Cistern With Supporting Legs

SKU: 2022H-0135-30
View Technical Drawing Here

Properties

  • Concealed cistern for wet processing
  • Galvanized steel frame
  • Adjustable supporting feet (18 cm)
  • Dual flush 6/3 litre concealed cistern
  • Flush volume adjustable (large flush 4-7 L, small flush 2-3 L)
  • Fully insulated for protection against condensation
  • Support 400 kg static load
  • Supports either 180 mm or 230 mm pan bolt centres
  • Equipped with pre-installed stop valve – top middle
  • Water supply connection possibility on the three positions

Special Feature

  • Silent operation – Only The Best Inside Fluidmaster 747 fill valve
  • Quiet hydraulic fill valve (Noise class 1 ISO 3822)
  • Fill valve flow pressure, 0.2 Bar – 10 Bar

Product Contains

  • 1/2″ Water supply connection with flexible hose
  • PE drain elbow Ø 90/90 mm with a seal
  • Eccentric PE adapter Ø 90/110 mm with a seal
  • Complete installation and fixing material

Information

  • Warranty – 10 years for cistern
  • Warranty – 2 years For gaskets, rubber parts (EPDM)
  • 25 years parts availability
  • CE EN 14055 – CL1-6- NL I – VR I
  • Various certifications
