Wisa XS WC Full Frame 118cm ø 90/110mm

SKU: 2040F-033-10

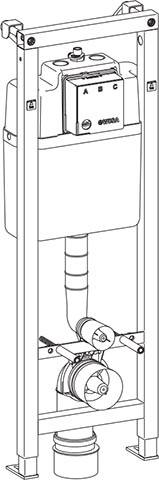

View Technical Drawing Here

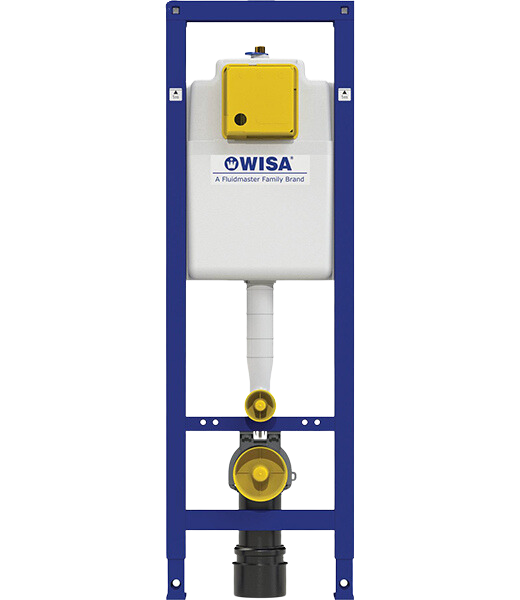

Wisa XS WC Full Frame 118cm ø 90/110mm

  • Pre-installed WC cistern with support frame
  • Blue powder coated frame
  • Adjustable feet (20 cm)
  • Dual flush 3/6 L or 6 L flush interruption depending on control panel
  • Flush volume adjustable between 6 and 7.5 L
  • Insulated against condensation
  • Quiet hydraulic float valve
  • Pre-installed stop valve
  • Water connection 1/2”
  • Pre-assembled wall fixation kit
  • Incl. WC connection kit, fixation materials, masonry aid, discharge elbow PE 90 mm with reducer to 110 or 100 mm
  • Incl. insulation kit for pan to wall
  • CE EN 14055 – CL1-6- NL I – VR I
Adjustable depth: Yes
Adjustable flushing water quantity: Yes
Adjustable height: Yes
Adjustable toilet height: No
Adjustable width: No
Battery power supply: No
Centre distance of toilet attachment: 18 cm and 23 cm
Declaration of Performance: 14055
Depth: 140 to 200 mm
Flushing: Two quantities
Flushing water quantity: 3 to 6 l
Frame suitable for wc with offset > 60cm: Yes
Height: 1180 to 1380 mm
KIWA certified: Yes
Load capacity >= 400 kg according to EN 997: Yes
Material: Steel
Material flushing reservoir: Plastic
Max. flushing water quantity: 7.5 l
Min. flushing water quantity: 3 l
Min. shelf height: 1180 mm
Number of tap water connections: 1
Outer pipe diameter drainage: 90 mm
Programmable with remote control: No
Quality class flushing reservoir: Polypropylene (PP)
Reservoir type: WISA XS
Self-bearing construction: Yes
Series: XS
Size of tap water connection: 1/2 inch
Sound class according to EN ISO 3822: Group I,
Spacer under reservoir: No
Suitable for drywall: Yes
Suitable for electrical operation: Yes
Suitable for flushing flow throttling: Yes
Suitable for front operation: Yes
Suitable for infrared operation: Yes
Suitable for manual operation: Yes
Suitable for pneumatic operation: Yes
Suitable for radar operation: No
Suitable for sanitary installation wall system: No
Suitable for shelf operation: No
Suitable for shower toilet: No
Suitable for solid wall: No
Suitable for toilets with a reduced contact area: Yes
Surface protection: Coated
Tap water connection: External thread
Warranty: 10 years
Width: 380 to 380 mm
With anti-condensation insulation: Yes
With bracket suitable for floor mounting: Yes
With bracket suitable for high wall mounting: Yes
With bracket suitable for low wall mounting: No
With building management system connection: No
With contact sound insulation set: Yes
With control panel: No
With drainage bend: Yes
With electrical connection: No
With fan connection: No
With flushing bend: Yes
With front cladding: No
With inlet and outlet fittings: Yes
With mounting material for the element: Yes
With mounting material for the toilet: Yes
With stop valve: Yes
